How to export configuration from Juniper IDP Series Appliances

Juniper IDP Series Device Guide

Using HTTP(S)

We would recommend using HTTPS rather than HTTP for transferring your devices configuration as the latter provides no encryption. The procedure for getting the configuration from the device using HTTP(S) is as follows:

  1. Using your favorite web browser, connect to the HTTP(S) service provided by your Juniper IDP for remote management. You can do this by entering "https://" (recommended) or "http://" followed by your devices IP address.

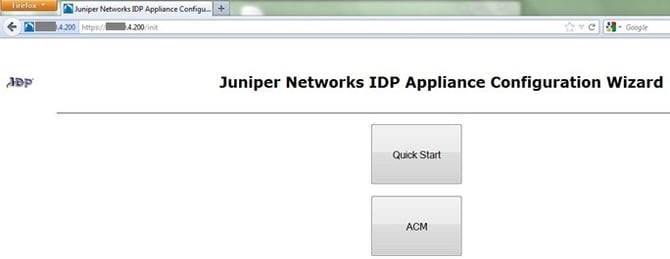

  2. Choose ACM.

    Juniper_IDP_Series_Appliances

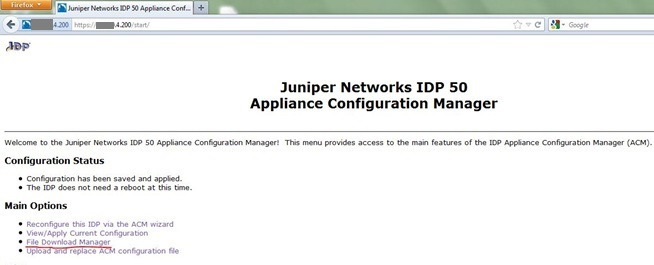

  3. Select File Download Manager from the options on the left hand side.

    Juniper_IDP_Series_Appliances_1

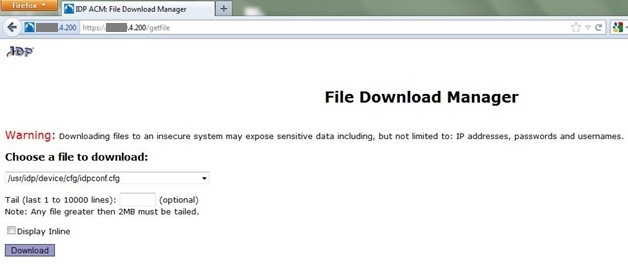

  4. Choose idpconf.cfg from the drop down menu.

    Juniper_IDP_Series_Appliances_2

  5. Click Download.

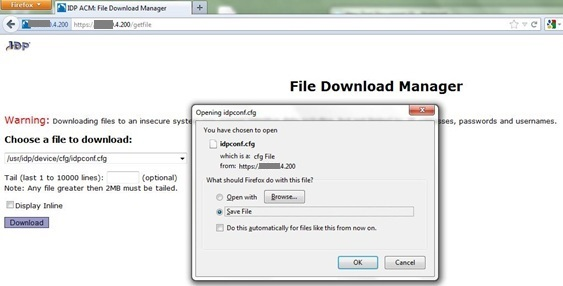

  6. Click OK to save your configuration

    Juniper_IDP_Series_Appliances_3
