Please Note: This guide is for Nipper (v2) only.
Before we start
Microsoft Windows
From Nipper 2.6.2 the command line tool is installed by default. It adds Nipper to the global path to allow users to launch Nipper from any directory and run audits easier and more efficiently.
With all version of Nipper up to and including 2.5.1.4644, the default installation options do not include the command line tools. If “nipper.exe” is not included in your Nipper directory, then you will have to re-run setup and include it on the installation options screen.
When installing, the Nipper directory is not automatically added to the Windows search path. To be able to execute “nipper” you will need to open a command prompt in the directory where you installed the software, or use the full path when you run it. E.g. “C:\Program Files\Nipper\nipper” instead of just “nipper”.
Command Line Options
This document makes use of the command line version of Nipper to perform an audit on Microsoft Windows, GNU/Linux or Apple Mac. It will assume that you can execute the command line version by entering the command “nipper”.
Throughout this document we will detail command line options and give examples of how they are used. If the commands include any of the conventions detailed in the table below, then the convention and its contents should be replaced entirely. The conventions used in this document are:
|
Convention |
Description |
|
[ ] |
Describes optional command text – it is not required. |
|
< > |
Describes an option that you must choose. |
|
| |
Used to divide a list of options that could be used – it will always appear within one of the previous conventions. |
Nipper is a powerful auditing tool with a huge number of command line options. The command line tool includes a built-in help facility. To access this, just enter the following command:
The help has been split into topics such as “Report”, “Devices” and “Save”. To get help on any given topic, enter the command:
nipper --help=<topic>
For example, you can get help on setting profiles by using the following command:
nipper --help=profile
The basics – auditing using the command line
You can perform an audit of a device configuration that has been saved to a local file using the following command:
For example, to audit the demo configuration file “cisco-router.txt” from the “demo-files” directory and save the report to your Windows desktop, enter:
To audit a device over the network (remote), such as a Cisco router, you could use a command such as the following:
nipper --remote-device=<address> --ios-router --protocol=<ssh | https> --username=<user> --password=<password> --priv-password=<enable password> --output=<report file>
If you want to audit multiple devices in the same report, you can just add other configurations as an input for Titania Nipper:
nipper --input=demo-files\cisco-router.txt --input=demo-files\3Com5500.txt --output=c:\users\testuser\Desktop\test.html
For auditing multiple remote devices, you can stack the commands such as:
nipper --remote-device=<address> --ios-router --protocol=<ssh | https> --username=<user> --password=<password> --priv-password=<enable password> --remote-device=<address> --juniper-srx --protocol=<ssh | https> --username=<user> --password=<password> --output=<report file>
To audit a directory containing configuration files from lots of different devices you could use a command such as:
All those examples assume that you are using the Nipper settings that are currently configured and accepting any defaults. You can configure other settings by adding them to the command too, for example
nipper --input=<configuration file> --output=<report file> --company-name=Titania
Using settings profiles
The Nipper command line is a powerful tool with lots of options. Profiles make it easy for you to use the same settings each time and you can have multiple profiles for each different type of audit that you want to perform.

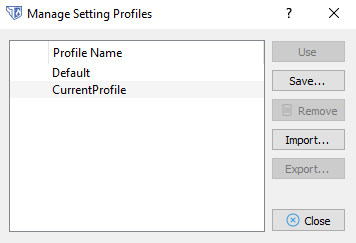

All settings and profiles are shared between both the graphical interface and the command line. So you may find it easier to browse the Nipper settings using your mouse in the graphical interface. Once you have set the options for a particular profile, select the “Manage Setting Profiles” from the “Tools” menu, click “Save” and give the profile a name.
In the screenshot above , we have called our profile “Example”. The “Default” profile represents the default settings for Titania Nipper and can be used to revert back to the original factory default settings.
To change settings using the command line, you can enter one or many settings at a time on the command line:
nipper --company-name=Titania
All the settings are saved, so they are remembered between each time you run Nipper. This functionality can be changed by modifying the auto save setting:
For the purpose of this guide though, it is helpful for auto save to be enabled (the default setting). To save the current settings as a new profile, you can use the following command:
nipper --save-profile=<name>
Existing profiles can be listed using the following command:
If a current profile is being used, it will be shown with a * next to the name.
Now when you run an audit you can specify the name of the profile to use at the start and all the options set for that profile will be used.
Scheduling an audit
How you can schedule an audit depends on which operating system that you use for Nipper. This guide will cover using Task Scheduler (Windows) and Cron (GNU/Linux) for creating and scheduling an audit task.
As an example, we will focus on creating a scheduled task to perform a daily audit of all the configurations stored in a single directory. We will also use a profile to ensure that the same settings are used for each audit.
Microsoft Windows
-

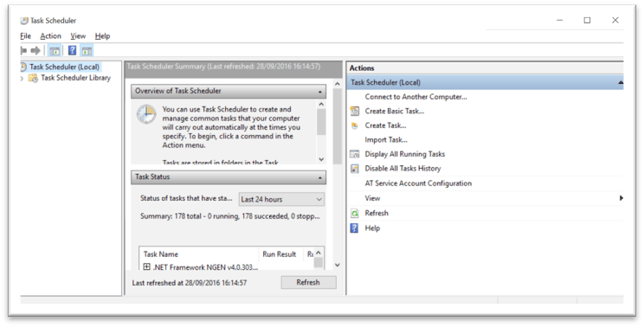

Start the Windows Task Scheduler (on Windows 10 you can do this by clicking on the Start button and then entering “task scheduler” and clicking on “Task Scheduler”).
-
Click on the “Create Basic Task…” action.
-

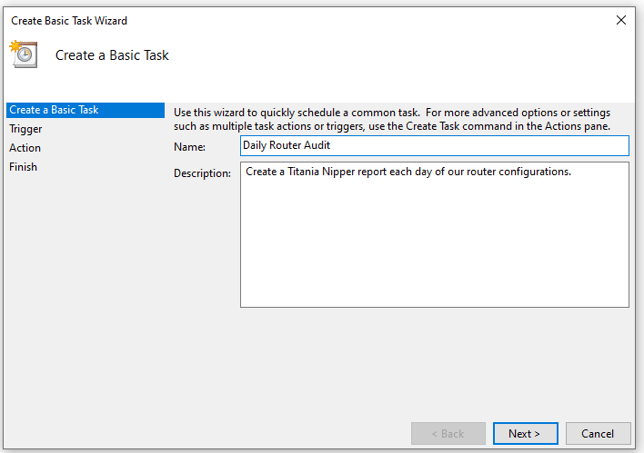

Enter a name and description for the task, then click on the “Next” button.
-
Select “Daily” for the trigger, then click on the “Next” button.
-
Select a start time for the task, then click on the “Next” button.
-
Select “Start a program” from the actions, then click on the “Next” button.
-

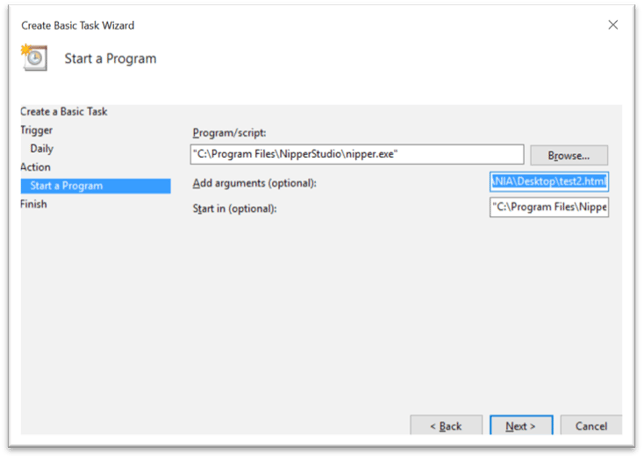

Select the “nipper.exe” program in the “program/script” box. Then add the arguments “--input=<configuration directory> --report=<report file>”. Also add the nipper.exe program file directory to the “Start in (optional)” box – DO NOT USE QUOTES. Then click on the “Next” button.
-

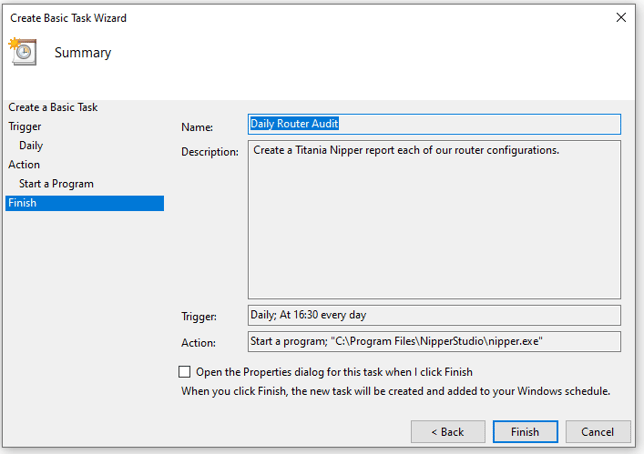

Review the summary and click “Finish”
The audit task should now be scheduled and run on daily at the specified time.
It is worth noting that there are a number of things on Windows that may prevent Task Scheduler from allowing a task to successfully run. The Task Scheduler application shows event viewer entries that are relevant and can help to diagnose any issues. Below are a few common causes for scheduled tasks not to run.
-
Your user needs permission to schedule tasks.
-
Your Windows system may report that the user is not logged in. In Task Scheduler, modify the properties of the task and set it to “Run whether user is logon on or not”. You will need to enter the logon password for your user at the logon prompt.
-
You should not have any quotes in the “Start in” directory. If this is not possible, then you can always create a windows batch file to execute the audit job, rather than directly executing Titania Nipper.
To create a Windows batch file:
-
Open notepad.
-
Enter one command on each line, as you would type it on the command line.
-
Once you have added all the commands, save the file with a “.bat” file extension. For example, “audit.bat”.
You can run the batch file by clicking on it in Windows Explorer or from the command line. When you are happy that everything is working as expected, follow the task scheduler steps to schedule the audit.
GNU/Linux
To schedule an audit on GNU/Linux systems, such as Red Hat or Ubuntu, this guide will use the Cron scheduler system.
-
Save a copy of the current Cron table by using the following command to save it to a file called “crontab.txt”:
crontab -l > crontab.txt -
Open the “crontab.txt” file using your favorite text editor. There may or may not already been entries in the schedule. - The file is expected to be in a specific format, with comment lines beginning with a “#” character. The format covers six individual elements, each separated by a space. They are minute (0-59), hour (0-23), day-of-month (1-31), month (1-12), day-of-week (0-6 starting with Sunday) and the command. A “*” is used wherever a value should be “any”.
-
Add the following line to the file to schedule a Titania Nipper audit at 11:30pm every day:
30 23 * * * nipper --input=<configuration directory> --report=<report file> -
Save the Cron table and exit your text editor.
-
Make Cron use the new table using the following command:
crontab crontab.txt
Now you should have an audit job scheduled on your Linux system.
Just like with Windows Scheduler, there may be something that prevents a Cron job from being run. In those cases, the following may help:
-
Check the log files (usually in /var/log/) to see if there any events that could indicate the reason for the failure.
-
Check in “/etc/cron.deny” and “/etc/cron.allow” to see if the user has been denied or given permission to schedule jobs.
-
Check to see if the system has the correct time, it may be in a different timezone.
